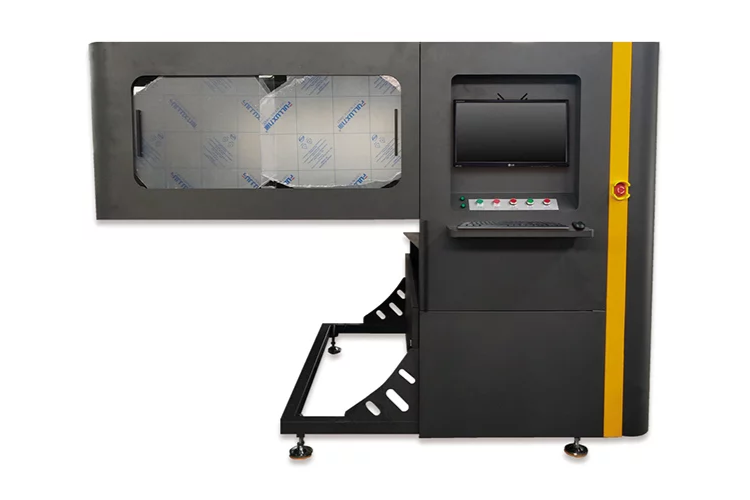

HJD-DP01 4 Epson I3200 print head oval machine dtg printer
Features:
Portable：
Integrated computer operating platform
Right origin type trolley
Real-time monitoring of print results
Other configuration:
Spray car collision avoidance
Ink absorption pad cleaning funtion
Parameter
Mode | EPSON i3200-A1/4 |
Board | Hosonsoft |
Ink supply | Siphon supply ink road |
Cleaning method | Automatic ink extraction and cleaning, automatic scraping |
Inkjet volume | 12ml/㎡fixed drops |
Speed | A4 size 210pcs/h |
Optimum Print Head height | 3mm |
Printing area | Print white Paste 58*65cm Don’t Print white Paste 65*65cm |
Digital dedicated space | 69*65cm(can use digital dedicated space) |
Package Size | 2550*1970*2150mm(L*W*H) |
Net weight | 700kg |
Data interface | Gigabit network interface |
Lifting method | The vehicle lift |
Printing accuracy | 360*2400 4pass |
Y-axis transmission | Single Y-axis ball screw |
Main drive motor | All-machine pure servo drive |
Portable | Integrated computer operating platform Right origin type trolley Real-time monitoring of print results |
Other configuration | Spray car collision avoidance Ink absorption pad cleaning funtion |
