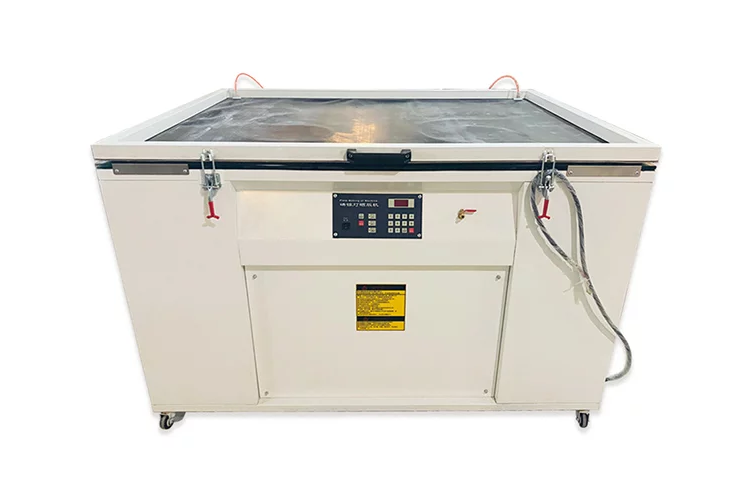

HJD-I101/I102 Common exposure machine
Features:
1. Screen vacuum adsorption, high elasticity blanket, make screen close fit with the film, a true representation of the film patterns.
2. Use of imported high-performance vacuum compressor and vacuum adsorption, recovery particularly good performance.
3. Quick start type sets exposure system, uniform and stable light intensity, exposure pattern fine lines.
4. After the vacuum suction process is completed, the exposure process is started, vacuum and exposure process integration is complete.
Parameter
Model | Specification | Lamp power | Max frame size | Electrical power | N.W. | Machine Dimensions(mm) |
900*1200mm | 900*1200mm | 2kw | 700*1000mm | 220V/380V 50HZ | 130kgs | 1200*900*950 |
1200*1500mm | 1200*1500mm | 2kw | 1000*1300mm | 220V/380V 50HZ | 168kgs | 1500*1200*1000 |
